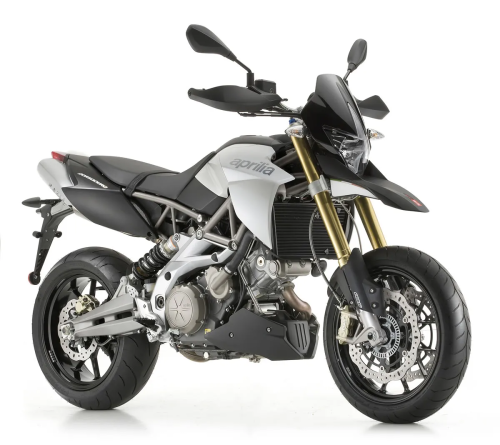

Aprilia Dorsoduro 1200
- ECU
- Marelli IAW 7SM
- ECU maker
- Marelli
- Model years
- 2011-2016
- Stock firmware
- Included · 896 KB
What you can tune
32 calibration tables · 0 scalars · 4 patches & flags — all editable in the browser.
Getting started
Start from the included stock firmware, or upload your own BIN read.
Heat-mapped tables, editable 2D/3D graphs, cell math, AI auto-tune, and compare against other reads.
Download a standard modified BIN and flash it with your own hardware and software.
Calibration maps
| Map | Group | Tables |
|---|---|---|
| Fuel Correction Left # TPS v RPM | Fuel | 2 |
| Fuel Correction Right # TPS v RPM | Fuel | 2 |
| Fuel Main Left | Fuel | 1 |
| Fuel Main Right | Fuel | 1 |
| Fuel Engine Temp | Fuel | 1 |
| Max rpm, Return Fueling | Fuel | 1 |
| Ignition Left | Ignition | 1 |
| Ignition Right | Ignition | 1 |
| TPS Legend | Throttle / ETV | 1 |
| % Throttle | Throttle / ETV | 1 |
| % Throttle 2 | Throttle / ETV | 1 |
| Torque demand Track | Torque | 1 |
| Torque demand Sport | Torque | 1 |
| Torque demand Road | Torque | 1 |
| Idle RPM | Idle | 1 |
| Intake Air Temp? | Temperature | 1 |
| Engine Temp Legend | Temperature | 1 |
| Max rpm | Limiters | 1 |
| Software | Other · IAW RSV4 1338xxx Read Only | 1 |
| Drawing | Other · IAW RSV4 1338xxx Read Only | 1 |
| Hardware | Other · IAW RSV4 1338xxx Read Only | 1 |
| Omologation | Other · IAW RSV4 1338xxx Read Only | 1 |
| Model | Other · IAW RSV4 1338xxx Read Only | 1 |
| RPM Legend | Other · IAW RSV4 1338xxx Read Only | 1 |
| New Table # (#x#) RPM | Other · IAW RSV4 1338xxx Read Only | 3 |
| Intake Pressure Legend | Other · IAW RSV4 1338xxx Read Only | 1 |
| % RPM legend (1x16) | Other · IAW RSV4 1338xxx Read Only | 1 |
| Air pressure Legend (1x12) | Other · IAW RSV4 1338xxx Read Only | 1 |
4 patches & flags (toggle features on/off)
MotoEditor edits the calibration and exports a standard BIN — reading and flashing the ECU is handled by your own flashing hardware and software.
Frequently asked
What can I tune on the Aprilia Dorsoduro 1200 2011-2016?
This verified definition exposes 32 calibration tables — including fuel, ignition, throttle, limiters, idle, other · iaw rsv4 1338xxx read only, temperature and torque maps — plus 0 adjustable scalars and 4 feature patches, all editable in your browser.
Do I need to remove or open the ECU?
No. MotoEditor edits the calibration and exports a standard BIN. Reading the stock file from the bike and writing it back is done with your own flashing hardware and software.
Which ECU does this Aprilia Dorsoduro 1200 definition cover?
The Marelli IAW 7SM (Marelli). Every map address and scaling is verified against the stock firmware, so what you edit matches the real calibration.
Can I use my own stock file?
Yes. Start a project from your bike's stock BIN and your changes apply to it, or begin from the built-in reference — either way you export a standard BIN.
How much does access cost?
MotoEditor is a single subscription that unlocks the browser editor for this definition and every other bike in the library — no per-project or per-download fees.
